DAC2815S, DAC2800S, 5.4W DC-DC CONVERTERS

ISO-9001 CERTIFIED BY DSCC M.S.KENNEDY CORP.4707 Dey Road Liverpool, N.Y.13088 5.4W DC-DC CONVERTERS DAC2800S SERIES (315) 701-6751 .
The DAC2812S and DAC2815S DC-DC converters are higher output voltage companion devices to MSK's DHC types.

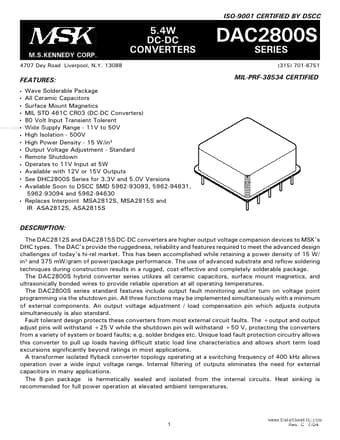

datasheet Preview Page 1 from Datasheet4u.com

DAC2800S_MSK.pdf

DAC2815S Datasheet Preview — This datasheet PDF includes multiple part numbers: DAC2815S, DAC2800S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DAC2815S, DAC2800S

Manufacturer:

MSK

File Size:

461.65 KB

Description:

5.4W DC-DC CONVERTERS

Note:

This datasheet PDF includes multiple part numbers: DAC2815S, DAC2800S.
Please refer to the document for exact specifications by model.

Features

* Wave Solderable Package All Ceramic Capacitors Surface Mount Magnetics MIL STD 461C CR03 (DC-DC Converters) 80 Volt Input Transient Tolerent www. DataSheet4U. com Wide Supply Range - 11V to 50V High Isolation - 500V High Power Density - 15 W/in³ Output Voltage Adjustment - Standard Remote Shutdown Op

Applications

* A transformer isolated flyback converter topology operating at a switching frequency of 400 kHz allows operation over a wide input voltage range. Internal filtering of outputs eliminates the need for external capacitors in many applications. The 8-pin package is hermetically sealed and isolated fro
