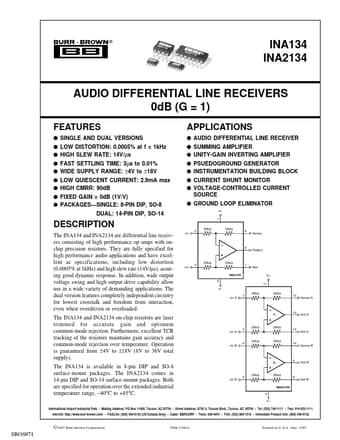

INA134 Datasheet, Receivers, Burr-Brown Corporation

INA134 Features

• Receivers q SINGLE AND DUAL VERSIONS q LOW DISTORTION: 0.0005% at f = 1kHz q HIGH SLEW RATE: 14V/µs q FAST SETTLING TIME: 3µs to 0.01% q WIDE SUPPLY RANGE: ±4V to ±18V q LOW QUIESCENT CURRENT: 2.

PDF File Details

Part number:

INA134

Manufacturer:

Burr-Brown Corporation

File Size:

229.25kb

Download:

📄 Datasheet

Description:

Audio differential line receivers. The INA134 and INA2134 are differential line receivers consisting of high performance op amps with onchip precision resistors. They a

INA134 Application

• Applications q AUDIO DIFFERENTIAL LINE RECEIVER q SUMMING AMPLIFIER q UNITY-GAIN INVERTING AMPLIFIER q PSUEDOGROUND GENERATOR q INSTRUMENTATION BUIL
