INA137

AUDIO DIFFERENTIAL LINE RECEIVERS

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Texas Instruments INA137UA-2K5 AUDIO DIFFERENTIAL LINE RECEIVER DigiKey 3009 1000 units
$1.45

INA137 Datasheet (251.28 KB)

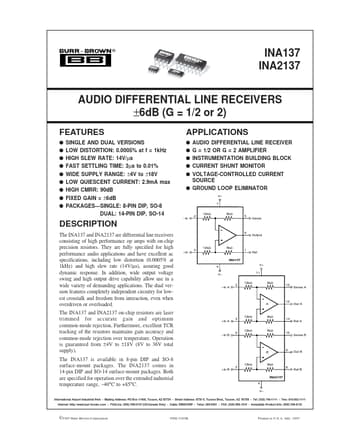

Preview of INA137 PDF Datasheet

Datasheet Details

Part number:

INA137

Manufacturer:

Burr-Brown Corporation

File Size:

251.28 KB

Description:

Audio differential line receivers

INA137 Features

* q SINGLE AND DUAL VERSIONS q LOW DISTORTION: 0.0005% at f = 1kHz q HIGH SLEW RATE: 14V/µs q FAST SETTLING TIME: 3µs to 0.01% q WIDE SUPPLY RANGE: ±4V to ±18V q LOW QUIESCENT CURRENT: 2.9mA max q HIGH CMRR: 90dB q FIXED GAIN = ±6dB q PACKAGES

* SINGLE: 8-PIN DIP, SO-8 DUAL: 14-PIN DIP, SO-14

INA137 General Description

The INA137 and INA2137 are differential line receivers consisting of high performance op amps with on-chip precision resistors. They are fully specified for high performance audio applications and have excellent ac specifications, including low distortion (0.0005% at 1kHz) and high slew rate (14V/µs.
