INA114

Precision Instrumentation Amplifier

INA114 Features

* Low offset voltage: 50µV maximum for high gains

* Low drift: 0.3µV/°C maximum for high gains

* Low input bias current: 2nA maximum

* High common-mode rejection: 115dB minimum

* Input over-voltage protection: ±40V

* Wide supply range: ±2.25V to ±18V

INA114 General Description

The INA114 is a low-cost, general-purpose instrumentation amplifier offering excellent accuracy. The versatile three-op-amp design and small size make this device an excellent choice for a wide range of applications. A single external resistor sets any gain from 1 to 10,000. Internal input protect.

INA114 Datasheet (2.58 MB)

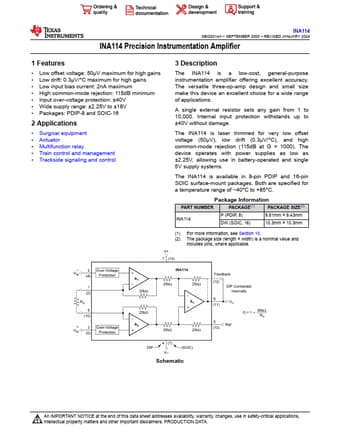

Preview of INA114 PDF

Datasheet Details

Part number:

INA114

Manufacturer:

Texas Instruments ↗

File Size:

2.58 MB

Description:

Precision instrumentation amplifier.
