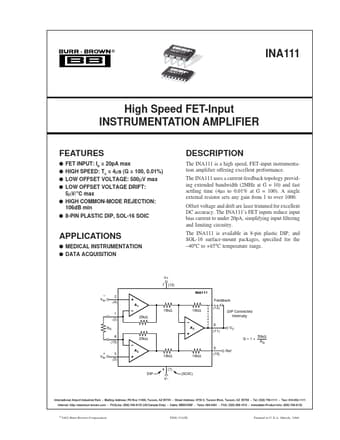

INA111 Datasheet, Amplifier, Burr-Brown Corporation

✔ INA111 Features

q FET INPUT: IB = 20pA max q LOW OFFSET VOLTAGE: 500µV max q LOW OFFSET VOLTAGE DRIFT: 5µV/°C max q HIGH COMMON-MODE REJECTION: 106dB min q 8-PIN PLASTIC DIP, SOL-16 SOIC

✔ INA111 Application

q MEDICAL INSTRUMENTATION q DATA ACQUISITION V+ 7 (13)
VIN INA111 2 (4) 1 (2) RG 8 (15) + VIN 3 (5) A2 10

PDF File Details

Burr-Brown Corporation manufacturer logo

Part number:

INA111

Manufacturer:

Burr-Brown Corporation

File Size:

245.36 KB

Download:

📄 Datasheet

Description:

High speed fet-input instrumentation amplifier. The INA111 is a high speed, FET-input instrumentation amplifier offering excellent performance. The INA111 uses a current-feedback to

📥 Download PDF (245.36 KB)
