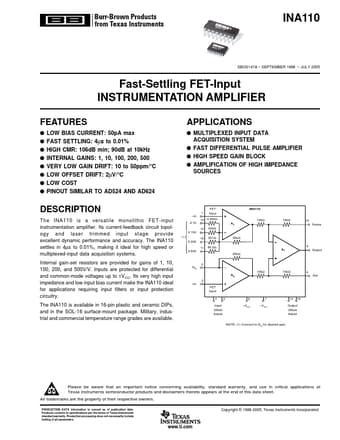

INA110 Datasheet, Amplifier, Burr-Brown Corporation

INA110 Features

• Amplifier q LOW BIAS CURRENT: 50pA max q FAST SETTLING: 4µs to 0.01% q HIGH CMR: 106dB min; 90dB at 10kHz q INTERNAL GAINS: 1, 10, 100, 200, 500 q VERY LOW GAIN DRIFT: 10 to 50ppm/°C q LOW OFFSET

PDF File Details

Part number:

INA110

Manufacturer:

Burr-Brown Corporation

File Size:

1.16MB

Download:

📄 Datasheet

Description:

Fast-settling fet-input instrumentation amplifier. The INA110 is a versatile monolithic FET-input instrumentation amplifier. Its current-feedback circuit topology and laser trimmed inp

INA110 Application

• Applications q MULTIPLEXED INPUT DATA ACQUISITION SYSTEM q FAST DIFFERENTIAL PULSE AMPLIFIER q HIGH SPEED GAIN BLOCK q AMPLIFICATION OF HIGH IMPEDAN
