INA117 Datasheet, Amplifier, Burr-Brown Corporation

INA117 Features

  • Amplifier q COMMON-MODE INPUT RANGE: ±200V (VS = ±15V) q PROTECTED INPUTS: ±500V Common-Mode ±500V Differential q UNITY GAIN: 0.02% Gain Error max q NONLINEARITY: 0.001% max q CMRR: 86dB min APP

PDF File Details

Part number:

INA117

Manufacturer:

Burr-Brown Corporation

File Size:

451.78kb

Download:

📄 Datasheet

Description:

High common-mode voltage difference amplifier. The INA117 is a precision unity-gain difference amplifier with very high common-mode input voltage range. It is a single monolithic I

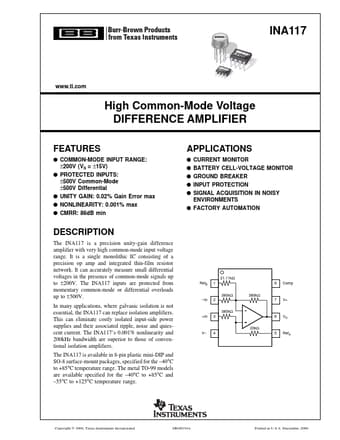

Datasheet Preview: INA117 📥 Download PDF (451.78kb)
Page 2 of INA117 Page 3 of INA117

INA117 Application

  • Applications q CURRENT MONITOR q BATTERY CELL-VOLTAGE MONITOR q GROUND BREAKER q INPUT PROTECTION q SIGNAL ACQUISITION IN NOISY ENVIRONMENTS q FACTO
