INA102 - Low-Power Instrumentation Amplifier

Product Overview

Part number	INA102
Manufacturer	AnalogySemi
File Size	1.60 MB
Description	Low-Power Instrumentation Amplifier
Datasheet	INA102 Datasheet
Note	This datasheet PDF includes multiple part numbers: INA102, INA101. Please refer to the document for exact specifications by model.

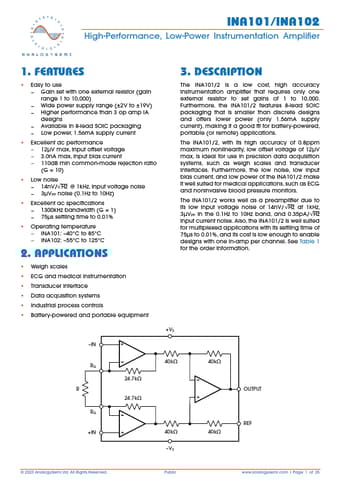

Additional preview pages of the INA102 datasheet.

The INA101/2 is a low cost, high accuracy instrumentation amplifier that requires only one external resistor to set gains of 1 to 10,000.

Easy to use Gain set with one external resistor (gain range 1 to 10,000) Wide power supply range (±2V to ±19V) Higher performance than 3 op amp IA designs Available in 8-lead SOIC packaging Low power, 1.56mA supply current.
Excellent dc performance 12μV max, input offset voltage 3.0nA max, input bias current 110dB min common-mode rejection ratio (G = 10).
Low noise 14nV/√Hz @ 1kHz, input voltage noise 3μVPP noise (0.1Hz to 10Hz).
Excellent ac specifications 1.
