Precision Low Cost ISOLATION AMPLIFIER

ISO121 Features

* q q q q q q q q q q 100% TESTED FOR PARTIAL DISCHARGE ISO120: Rated 1500Vrms ISO121: Rated 3500Vrms HIGH IMR: 115dB at 60Hz USER CONTROL OF CARRIER FREQUENCY LOW NONLINEARITY: ±0.01% max BIPOLAR OPERATION: VO = ±10V 0.3"-WIDE 24-PIN HERMETIC DIP, ISO120 SYNCHRONIZATION CAPABILITY WIDE TEMP RANGE:

ISO121 General Description

The ISO120 and ISO121 are precision isolation amplifiers incorporating a novel duty cycle modulationdemodulation technique. The signal is transmitted digitally across a 2pF differential capacitive barrier. With digital modulation the barrier characteristics do not affect signal integrity, which resu.

ISO121 Datasheet (210.95 KB)

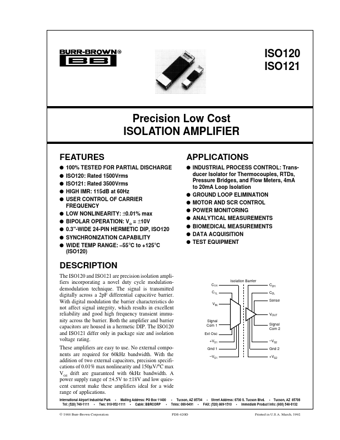

ISO121 Datasheet Preview — Preview of ISO121 PDF

Datasheet Details

Part number:

ISO121

Manufacturer:

Burr-Brown Corporation

File Size:

210.95 KB

Description:

Precision low cost isolation amplifier.
