ISO122, ISO122_Burr Datasheet - Burr-Brown Corporation

ISO122 - Precision Lowest Cost ISOLATION AMPLIFIER

The ISO122 is a precision isolation amplifier incorporating a novel duty cycle modulation-demodulation technique.

The signal is transmitted digitally across a 2pF differential capacitive barrier.

With digital modulation the barrier characteristics do not affect signal integrity, resulting in excelle

ISO122 Features

* q 100% TESTED FOR HIGH-VOLTAGE BREAKDOWN q q q q q RATED 1500Vrms HIGH IMR: 140dB at 60Hz BIPOLAR OPERATION: VO = ±10V 16-PIN PLASTIC DIP AND 28-LEAD SOIC EASE OF USE: Fixed Unity Gain Configuration APPLICATIONS q INDUSTRIAL PROCESS CONTROL: Transducer Isolator, Isolator for Thermocouples, RTDs, Pr

ISO122_Burr-BrownCorporation.pdf

This datasheet PDF includes multiple part numbers: ISO122, ISO122_Burr. Please refer to the document for exact specifications by model.

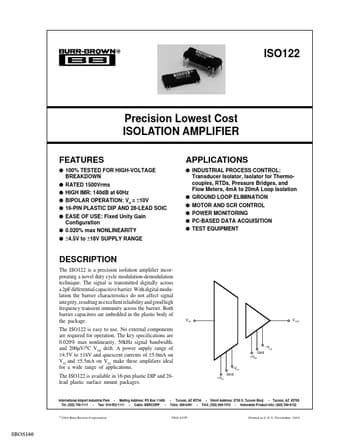

ISO122 Datasheet Preview Page 2 ISO122 Datasheet Preview Page 3

Datasheet Details

Part number:

ISO122, ISO122_Burr

Manufacturer:

Burr-Brown Corporation

File Size:

188.08 KB

Description:

Precision lowest cost isolation amplifier.

Note:

This datasheet PDF includes multiple part numbers: ISO122, ISO122_Burr.
Please refer to the document for exact specifications by model.
