PCM4104, PCM4104_Burr High-Performance 24-Bit 216kHz sampling Four-channel Audio Digital-to-Analog Converter

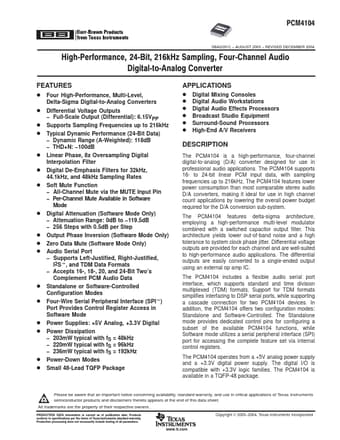

📥 Download Datasheet Datasheet Preview Page 1

Description

PCM4104 SBAS291C * AUGUST 2003 * REVISED DECEMBER 2004 HighĆPerformance, 24ĆBit, 216kHz Sampling, FourĆChannel Audio DigitalĆtoĆAnalo.
The PCM4104 is a high-performance, four-channel digital-to-analog (D/A) converter designed for use in professional audio applications.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PCM4104, PCM4104_Burr. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
PCM4104, PCM4104_Burr
Manufacturer
Burr-Brown Corporation
File Size
722.27 KB
Datasheet
PCM4104_Burr-BrownCorporation.pdf
Description
High-Performance 24-Bit 216kHz sampling Four-channel Audio Digital-to-Analog Converter
Note
This datasheet PDF includes multiple part numbers: PCM4104, PCM4104_Burr.
Please refer to the document for exact specifications by model.

Features

* D Four High-Performance, Multi-Level, Delta-Sigma Digital-to-Analog Converters D Differential Voltage Outputs
* Full-Scale Output (Differential): 6.15VPP D Supports Sampling Frequencies up to 216kHz D Typical Dynamic Performance (24-Bit Data)
* Dynamic Range (A-Weighted): 118dB
