PCM1600, PCM1600_Burr Datasheet - Burr-Brown Corporation

PCM1600, PCM1600_Burr, DIGITAL-TO-ANALOG CONVERTER

® PCM PCM 160 0 1601 PCM1600 PCM1601 For most current data sheet and other product information, visit www.burr-brown.com 24-Bit, 96kHz Sampling, .
The PCM1600(1) and PCM1601(1) are CMOS monolithic integrated circuits which feature six 24-bit audio digital-to-analog converters and support circuitr.

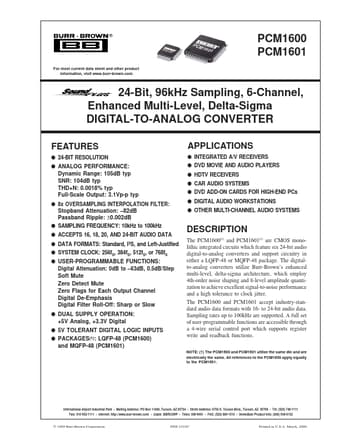

datasheet Preview Page 1 from Datasheet4u.com

PCM1600_Burr-BrownCorporation.pdf

PCM1600 Datasheet Preview — This datasheet PDF includes multiple part numbers: PCM1600, PCM1600_Burr. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PCM1600, PCM1600_Burr

Manufacturer:

Burr-Brown Corporation

File Size:

253.80 KB

Description:

DIGITAL-TO-ANALOG CONVERTER

Note:

This datasheet PDF includes multiple part numbers: PCM1600, PCM1600_Burr.
Please refer to the document for exact specifications by model.

Features

* q 24-BIT RESOLUTION q ANALOG PERFORMANCE: Dynamic Range: 105dB typ SNR: 104dB typ THD+N: 0.0018% typ Full-Scale Output: 3.1Vp-p typ q 8x OVERSAMPLING INTERPOLATION FILTER: Stopband Attenuation:
* 82dB Passband Ripple: ±0.002dB q SAMPLING FREQUENCY: 10kHz to 100kHz q ACCEPTS 16, 18, 20, AND 24
