PCM1606 SLES014B * OCTOBER 2001 * REVISED AUGUST 2002 24-BIT, 192-kHz SAMPLING, 6-CHANNEL, ENHANCED MULTILEVEL, DELTA-SIGMA DIGITAL-.
The PCM1606 is a CMOS monolithic integrated circuit that features six 24-bit audio digital-to-analog converters and support circuitry in a small 20-le.

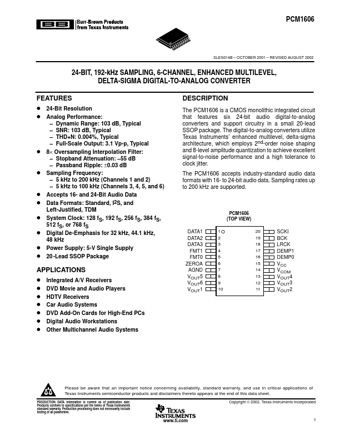

datasheet Preview Page 1 from Datasheet4u.com

PCM1606_Burr-BrownCorporation.pdf

PCM1606 Datasheet Preview — This datasheet PDF includes multiple part numbers: PCM1606, PCM1606_Burr. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PCM1606, PCM1606_Burr

Manufacturer:

Burr-Brown Corporation

File Size:

385.22 KB

Description:

DIGITAL-TO-ANALOG CONVERTER

Note:

This datasheet PDF includes multiple part numbers: PCM1606, PCM1606_Burr.
Please refer to the document for exact specifications by model.

Features

* D 24-Bit Resolution D Analog Performance:
* Dynamic Range: 103 dB, Typical
* SNR: 103 dB, Typical
* THD+N: 0.004%, Typical
* Full-Scale Output: 3.1 Vp-p, Typical 8× Oversampling Interpolation Filter:
* Stopband Attenuation:
* 55 dB
* Passband Ri

Applications

* D Integrated A/V Receivers D DVD Movie and Audio Players D HDTV Receivers D Car Audio Systems D DVD Add-On Cards for High-End PCs D Digital Audio Workstations D Other Multichannel Audio Systems DATA1 DATA2 DATA3 FMT1 FMT0 ZEROA AGND VOUT5 VOUT6 VOUT1 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 1
