PCM1680 - Audio Digital-to-Analog Converter

Product Overview

Texas Instruments

📥 Download Datasheet

PCM1680 Audio Digital-to-Analog Converter by Texas Instruments - Datasheet Preview — Datasheet preview – PCM1680

Datasheet Details

Part number	PCM1680
Manufacturer	Texas Instruments
File Size	824.00 KB
Description	Audio Digital-to-Analog Converter
Datasheet	PCM1680 Datasheet

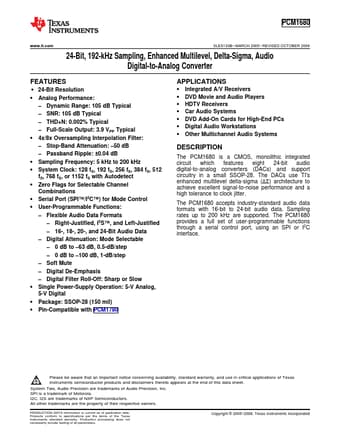

Additional preview pages of the PCM1680 datasheet.

Product details

Description

The PCM1680 is a CMOS, monolithic integrated circuit which

Features

1.
2345 24-Bit Resolution.
Analog Performance:.
Dynamic Range: 105 dB Typical.
SNR: 105 dB Typical.
THD+N: 0.002% Typical.
Full-Scale Output: 3.9 VPP Typical.
4x/8x Oversampling Interpolation Filter:.
Stop-Band Attenuation:.
50 dB.
Passband Ripple: ±0.04 dB.
Sampling Frequency: 5 kHz to 200 kHz.
System Clock: 128 fS, 192 fS, 256 fS, 384 fS, 512 fS, 768 fS, or 1152 fS with Autodetect.
