PCM1602A - Delta-Sigma Digital-to-Analog Converter

PCM1602A Description

PCM1602A www.ti.com SLES146A * AUGUST 2005 * REVISED OCTOBER 2010 24-Bit, 192-kHz Sampling, 6-Channel, Enhanced Multilevel, Delta-Si.
The PCM1602A is a CMOS, monolithic integrated circuit that features six 24-bit audio digital-to-analog converters (DACs) and support circuitry in a sm.

PCM1602A Features

* 1
* 2345 24-Bit Resolution
* Analog Performance:
* Dynamic Range: 105 dB, Typical
* SNR: 105 dB, Typical
* THD+N: 0.002%, Typical
* Full-Scale Output: 3.1 VPP, Typical
* 4×/8× Oversampling Interpolation Filter:
* Stop-Band Attenuation:

PCM1602A Applications

* Integrated A/V Receivers
* DVD Movie and Audio Players
* HDTV Receivers
* Car Audio Systems
* DVD Add-On Cards for High-End PCs
* Digital Audio Workstations

📥 Download Datasheet

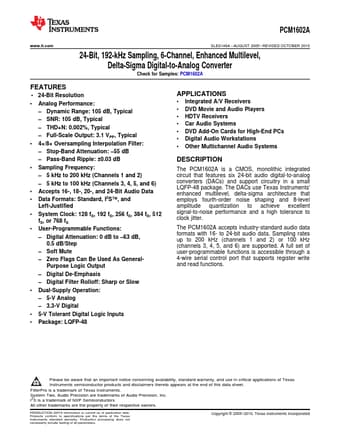

Preview of PCM1602A PDF
