PCM1604, PCM1604_Burr, DIGITAL-TO-ANALOG CONVERTER

® PCM PCM 160 4 1605 PCM1604 PCM1605 For most current data sheet and other product information, visit www.burr-brown.com 24-Bit, 192kHz Sampling,.
The PCM1604(1) and PCM1605(1) are CMOS monolithic integrated circuits which feature six 24-bit audio digital-to-analog converters, and support circuit.

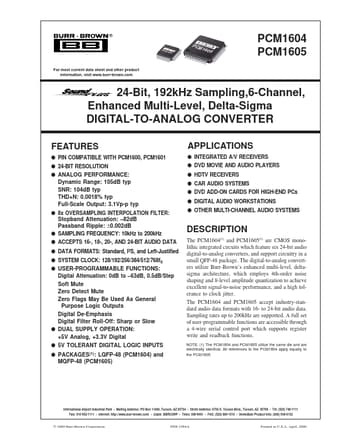

datasheet Preview Page 1 from Datasheet4u.com

PCM1604_Burr-BrownCorporation.pdf

PCM1604 Datasheet Preview — This datasheet PDF includes multiple part numbers: PCM1604, PCM1604_Burr. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PCM1604, PCM1604_Burr

Manufacturer:

Burr-Brown Corporation

File Size:

263.89 KB

Description:

DIGITAL-TO-ANALOG CONVERTER

Note:

This datasheet PDF includes multiple part numbers: PCM1604, PCM1604_Burr.
Please refer to the document for exact specifications by model.

Features

* q PIN COMPATIBLE WITH PCM1600, PCM1601 q 24-BIT RESOLUTION q ANALOG PERFORMANCE: Dynamic Range: 105dB typ SNR: 104dB typ THD+N: 0.0018% typ Full-Scale Output: 3.1Vp-p typ q 8x OVERSAMPLING INTERPOLATION FILTER: Stopband Attenuation:
* 82dB Passband Ripple: ±0.002dB q SAMPLING FREQUENCY: 10kHz
