PCM1601, PCM1601_Burr DIGITAL-TO-ANALOG CONVERTER

Burr-Brown Corporation

Description

® PCM PCM 160 0 1601 PCM1600 PCM1601 For most current data sheet and other product information, visit www.burr-brown.com 24-Bit, 96kHz Sampling, .
The PCM1600(1) and PCM1601(1) are CMOS monolithic integrated circuits which feature six 24-bit audio digital-to-analog converters and support circuitr.

📥 Download Datasheet

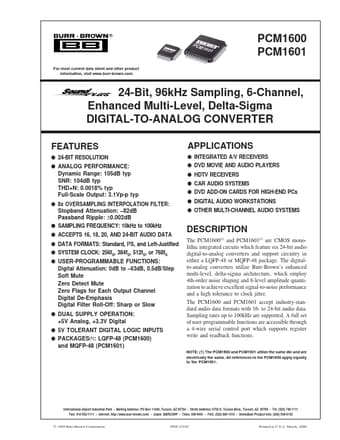

PCM1601 Datasheet Preview — This datasheet PDF includes multiple part numbers: PCM1601, PCM1601_Burr. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: PCM1601, PCM1601_Burr
Manufacturer: Burr-Brown Corporation
File Size: 253.80 KB
Datasheet: PCM1601_Burr-BrownCorporation.pdf
Description: DIGITAL-TO-ANALOG CONVERTER
Note: This datasheet PDF includes multiple part numbers: PCM1601, PCM1601_Burr.
Please refer to the document for exact specifications by model.

Features

* q 24-BIT RESOLUTION q ANALOG PERFORMANCE: Dynamic Range: 105dB typ SNR: 104dB typ THD+N: 0.0018% typ Full-Scale Output: 3.1Vp-p typ q 8x OVERSAMPLING INTERPOLATION FILTER: Stopband Attenuation:
* 82dB Passband Ripple: ±0.002dB q SAMPLING FREQUENCY: 10kHz to 100kHz q ACCEPTS 16, 18, 20, AND 24
