VCA2612, VCA2612_Burr - TMDual/ VARIABLE GAIN AMPLIFIER with Low Noise Preamp

VCA2612 Description

® VCA VCA2612 261 2 For most current data sheet and other product information, visit www.burr-brown.com Dual, VARIABLE GAIN AMPLIFIER with Low Noi.
The VCA2612 is a highly integrated, dual receive channel, signal processing subsystem.

VCA2612 Features

* q LOW NOISE PREAMP:
* Low Input Noise: 1.25nV/√Hz
* Active Termination Noise Reduction
* Switchable Termination Value
* 80MHz Bandwidth
* 5dB to 25dB Gain
* Differential Input /Output q LOW NOISE VARIABLE GAIN AMPLIFIER:
* Low Noise VCA: 3.3nV/

VCA2612 Applications

* where noise performance is critical. The VCA2612 is available in a TQFP-48 package. Maximum Gain Select FBCNTL RF2 RF1 LNPOUTN VCAINN VCACNTL MGS1 MGS2 MGS3 FBSW FB VCA2612 (1 of 2 Channels) APPLICATIONS q ULTRASOUND SYSTEMS q WIRELESS RECEIVERS q TEST EQUIPMENT Analog Control Maximum Gain Select

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VCA2612, VCA2612_Burr. Please refer to the document for exact specifications by model.

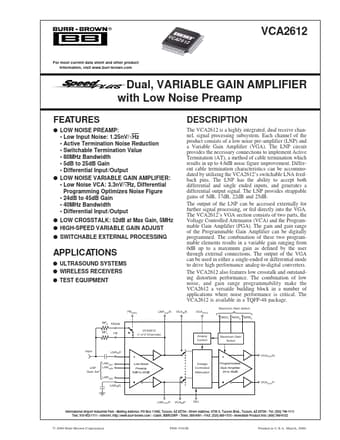

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VCA2612, VCA2612_Burr
Manufacturer
Burr-Brown Corporation
File Size
270.34 KB
Datasheet
VCA2612_Burr-BrownCorporation.pdf
Description
TMDual/ VARIABLE GAIN AMPLIFIER with Low Noise Preamp
Note
This datasheet PDF includes multiple part numbers: VCA2612, VCA2612_Burr.
Please refer to the document for exact specifications by model.
