VCA2618YR Datasheet - Burr-Brown Corporation

Dual/ VARIABLE GAIN AMPLIFIER with Input Buffer

VCA2618YR General Description

The VCA2618 is a highly integrated, dual receive channel, Variable Gain Amplifier (VGA) with analog gain control. The VCA2618’s VGA section consists of two parts: the Voltage Controlled Attenuator (VCA) and the Programmable Gain Amplifier (PGA). The gain and gain range of the PGA can be digitally pr.

VCA2618YR Datasheet (326.85 KB)

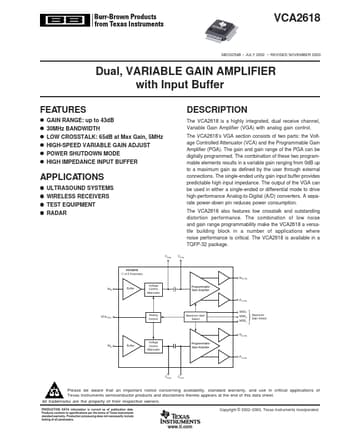

VCA2618YR Datasheet Preview — Preview of VCA2618YR PDF

Datasheet Details

Part number:

VCA2618YR

Manufacturer:

Burr-Brown Corporation

File Size:

326.85 KB

Description:

Dual/ variable gain amplifier with input buffer.
