VCA2613, VCA2613_Burr Dual/ VARIABLE GAIN AMPLIFIER with Low-Noise Preamp

VCA2613 Description

VCA 261 3 VCA2613 SBOS179D * DECEMBER 2000 * REVISED OCTOBER 2004 Dual, VARIABLE GAIN AMPLIFIER with Low-Noise Preamp .
The VCA2613 is a dual, Low-Noise Preamplifier (LNP), plus low-noise Variable Gain Amplifier (VGA).

VCA2613 Features

* q LOW NOISE PREAMP: Low Input Noise: 1.0nV/√Hz Active Termination Noise Reduction Switchable Termination Value 80MHz Bandwidth 5dB to 25dB Gain Differential In and Out q LOW NOISE VARIABLE GAIN AMPLIFIER: Low Noise VCA: 3.3nV/√Hz, Differential Programming Optimizes Noise Figure 24dB to 45dB Gain 40M

VCA2613 Applications

* The output can be used in either a single-ended or differential mode to drive high-performance Analog-to-Digital (A/D) converters, and is cleanly limited for optimum overdrive recovery. The combination of low noise, gain, and gain range programmability makes the VCA2613 a versatile building block i

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VCA2613, VCA2613_Burr. Please refer to the document for exact specifications by model.

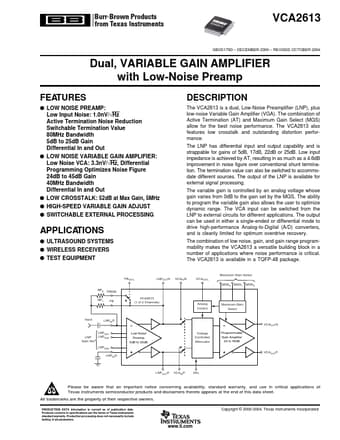

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VCA2613, VCA2613_Burr
Manufacturer
Burr-Brown Corporation
File Size
343.21 KB
Datasheet
VCA2613_Burr-BrownCorporation.pdf
Description
Dual/ VARIABLE GAIN AMPLIFIER with Low-Noise Preamp
Note
This datasheet PDF includes multiple part numbers: VCA2613, VCA2613_Burr.
Please refer to the document for exact specifications by model.
