VCA105-12io7

Thyristor Modules

IXYS

📥 Download PDF (59.37 KB)

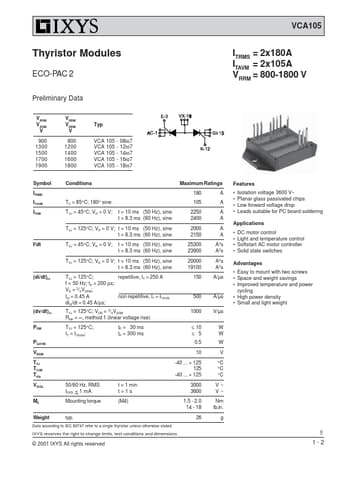

VCA105-12io7 Datasheet Preview Page 1 — Preview of VCA105-12io7 Datasheet

Datasheet Details

Part number:

VCA105-12io7

Manufacturer:

IXYS

File Size:

59.37 KB

Download:

📄 Download VCA105-12io7 Datasheet PDF

Description:

Thyristor modules.
VCA105 Thyristor Modules ECO-PAC 2 Preliminary Data I = 2x180A TRMS ITAVM = 2x105A VRRM = 800-1800.
V VRSM VDSM V 900 1300 1500 1700 1900 VRRM VDRM V 800 1200 1400 1600 1800 Typ VCA 105 - 08io7 VC.

✔ VCA105-12io7 Features

Isolation voltage 3600 V~
Planar glass passivated chips
Low forward voltage drop
Leads suitable for PC board soldering Applications
DC motor control
Light and

✔ VCA105-12io7 Application

DC motor control
Light and temperature control
Softstart AC motor controller
Solid state switches Ad
