VCA105-16io7, VCA105 - Thyristor Modules

VCA105-16io7 Description

VCA105 Thyristor Modules ECO-PAC 2 Preliminary Data I = 2x180A TRMS ITAVM = 2x105A VRRM = 800-1800 V VRSM VDSM V 900 1300 1500 1700 1900 VRRM VDRM.

VCA105-16io7 Features

* Isolation voltage 3600 V~
* Planar glass passivated chips
* Low forward voltage drop

VCA105-16io7 Applications

* DC motor control
* Light and temperature control
* Softstart AC motor controller
* Solid state switches Advantages
* Easy to mount with two screws
* Space and weight savings
* Improved temperature and power cycling
* High power densit

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VCA105-16io7, VCA105. Please refer to the document for exact specifications by model.

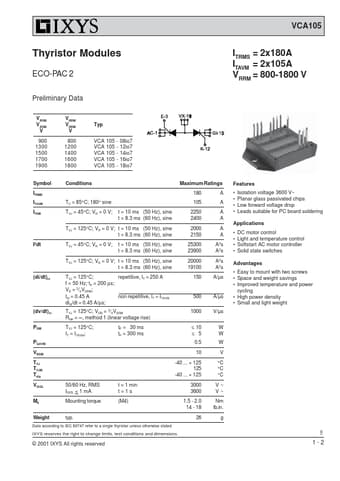

datasheet Preview Page 2

Datasheet Details

Part number
VCA105-16io7, VCA105
Manufacturer
IXYS
File Size
59.37 KB
Datasheet
VCA105-IXYS.pdf
Description
Thyristor Modules
Note
This datasheet PDF includes multiple part numbers: VCA105-16io7, VCA105.
Please refer to the document for exact specifications by model.
