VCA105-18io7 Thyristor Modules

VCA105 Thyristor Modules ECO-PAC 2 Preliminary Data I = 2x180A TRMS ITAVM = 2x105A VRRM = 800-1800 V VRSM VDSM V 900 1300 1500 1700 1900 VRRM VDRM V 800 1200 1400 1600 1800 Typ VCA 105 - 08io7 VCA 105 - 12io7 VCA 105 - 14io7 VCA 105 - 16io7 VCA 105 - 18io7 Symbol Conditions Maximum Ratings ITRMS ITAVM ITSM TC = 85°C; 180° sine TVJ = 45°C; VR = 0 V; t = 10 ms (50 Hz), sine t = 8.3 ms (60 Hz), sine 180 105 2250 2400 A A A A TVJ = 125°C; VR = 0 V; t = 10 ms (50 Hz), sine t = 8.3 ms (60.

VCA105-18io7 Features

* Isolation voltage 3600 V~

* Planar glass passivated chips

* Low forward voltage drop

* Leads suitable for PC board soldering Applications

* DC motor control

* Light and temperature control

* Softstart AC motor controller

* Solid state

VCA105-18io7 Datasheet (59.37 KB)

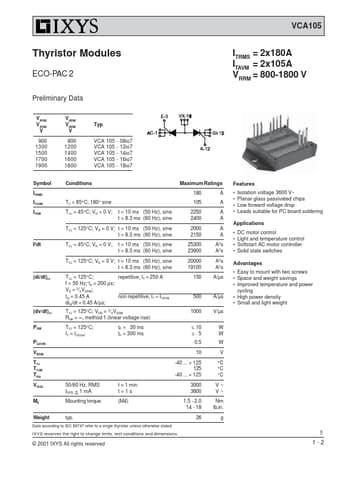

VCA105-18io7 Datasheet Preview — Preview of VCA105-18io7 PDF

Datasheet Details

Part number:

VCA105-18io7

Manufacturer:

IXYS

File Size:

59.37 KB

Description:

Thyristor modules.
