XTR101, XTR101_Burr, Precision/ Low Drift 4-20mA TWO-WIRE TRANSMITTER

XTR101 SBOS146A * OCTOBER 1986 * REVISED AUGUST 2004 Precision, Low Drift 4-20mA TWO-WIRE TRANSMITTER .
The XTR101 is a microcircuit, 4-20mA, two-wire transmitter containing a high accuracy instrumentation amplifier (IA), a voltage-controlled output curr.

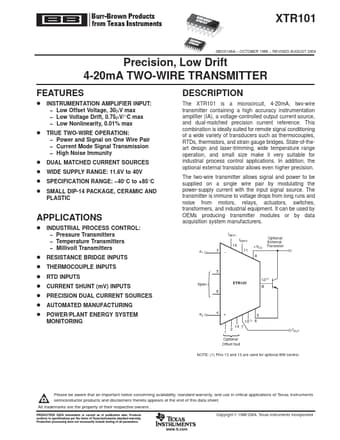

datasheet Preview Page 1 from Datasheet4u.com

XTR101_Burr-BrownCorporation.pdf

XTR101 Datasheet Preview — This datasheet PDF includes multiple part numbers: XTR101, XTR101_Burr. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

XTR101, XTR101_Burr

Manufacturer:

Burr-Brown Corporation

File Size:

1.37 MB

Description:

Precision/ Low Drift 4-20mA TWO-WIRE TRANSMITTER

Note:

This datasheet PDF includes multiple part numbers: XTR101, XTR101_Burr.
Please refer to the document for exact specifications by model.

Features

* D INSTRUMENTATION AMPLIFIER INPUT:
* Low Offset Voltage, 30µV max
* Low Voltage Drift, 0.75µV/°C max
* Low Nonlinearity, 0.01% max D TRUE TWO-WIRE OPERATION:
* Power and Signal on One Wire Pair
* Current Mode Signal Transmission
* High Noise Immunity D

Applications

* D INDUSTRIAL PROCESS CONTROL:
* Pressure Transmitters
* Temperature Transmitters
* Millivolt Transmitters D RESISTANCE BRIDGE INPUTS D THERMOCOUPLE INPUTS D RTD INPUTS D CURRENT SHUNT (mV) INPUTS D PRECISION DUAL CURRENT SOURCES D AUTOMATED MANUFACTURING D POWER/PLANT ENERGY
