XTR103, XTR103_Burr Datasheet - Burr-Brown Corporation

XTR103 4-20mA Current Transmitter

The XTR103 is a monolithic 4-20mA, two-wire current transmitter designed for Platinum RTD temperature sensors. It provides complete RTD current excitation, instrumentation amplifier, linearization, and current output circuitry on a single integrated circuit. Versatile linearization circuitry provide.

XTR103 Features

* q LESS THAN ±1% TOTAL ADJUSTED ERROR,

* 40°C TO +85°C q RTD EXCITATION AND LINEARIZATION q TWO OR THREE-WIRE RTD OPERATION q WIDE SUPPLY RANGE: 9V to 40V q HIGH PSR: 110dB min q HIGH CMR: 80dB min 5 Pt100 NONLINEARITY CORRECTION USING XTR103 APPLICATIONS q INDUSTRIAL PROCESS CONTROL q FACTOR

XTR103_Burr-BrownCorporation.pdf

This datasheet PDF includes multiple part numbers: XTR103, XTR103_Burr. Please refer to the document for exact specifications by model.

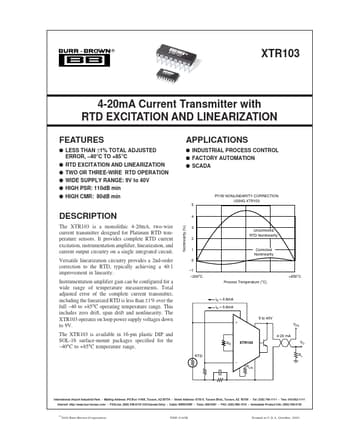

XTR103 Datasheet Preview Page 2 XTR103 Datasheet Preview Page 3

Datasheet Details

Part number:

XTR103, XTR103_Burr

Manufacturer:

Burr-Brown Corporation

File Size:

222.73 KB

Description:

4-20ma current transmitter.

Note:

This datasheet PDF includes multiple part numbers: XTR103, XTR103_Burr.
Please refer to the document for exact specifications by model.
