XTR117 Datasheet - Texas Instruments

XTR117 4-20mA Current-Loop Transmitter

The XTR117 is a precision current output converter designed to transmit analog 4-mA-to-20-mA signals over an industry-standard current loop. The device provides accurate current scaling and output current limit functions. The on-chip voltage regulator (5 V) can be used to power external circuitry. .

XTR117 Features

* Low quiescent current: 130 µA

* 5‑V regulator for external circuits

* Low span error: 0.05%

* Low nonlinearity error: 0.003%

* Wide-loop supply range: 7.5 V to 36 V

* Temperature range:

* 40°C to +125°C

* Packages: VSON-8 and VSSOP-8 2

XTR117-etcTI.pdf

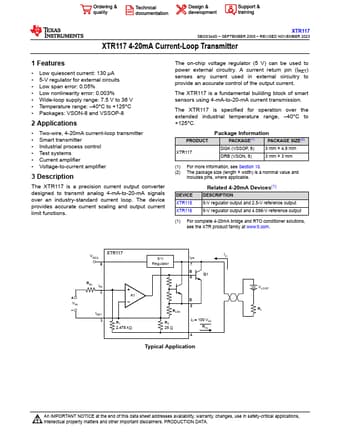

Preview of XTR117 PDF
XTR117 Datasheet Preview Page 2 XTR117 Datasheet Preview Page 3

Datasheet Details

Part number:

XTR117

Manufacturer:

Texas Instruments ↗

File Size:

1.46 MB

Description:

4-20ma current-loop transmitter.
