XTR305 Datasheet, Driver, Texas Instruments

XTR305 Features

  • Driver
  • 1 User-Selectable: Current or Voltage Output
  • VOUT: ±10 V (up to ±17.5 V at ±20-V supply)
  • IOUT: ±20 mA (Linear up to ±24 mA)
  • 40-V Supply Voltage

PDF File Details

Part number:

XTR305

Manufacturer:

Texas Instruments ↗

File Size:

863.55kb

Download:

📄 Datasheet

Description:

Industrial analog current or voltage output driver. The XTR305 is a complete output driver for costsensitive industrial and process control applications. The output can be configured as

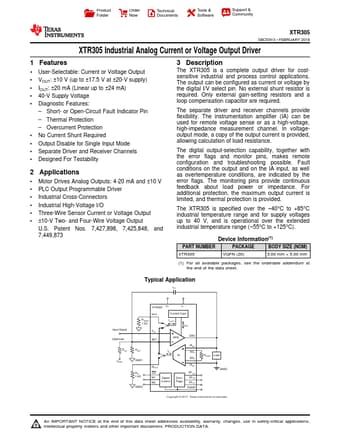

Datasheet Preview: XTR305 📥 Download PDF (863.55kb)
Page 2 of XTR305 Page 3 of XTR305

XTR305 Application

  • Applications
  • Motor Drives Analog Outputs: 4-20 mA and ±10 V
  • PLC Output Programmable Driver
  • Industrial Cross-Connectors
