XTR300 Industrial Analog Current/Voltage OUTPUT DRIVER

XTR300 Description

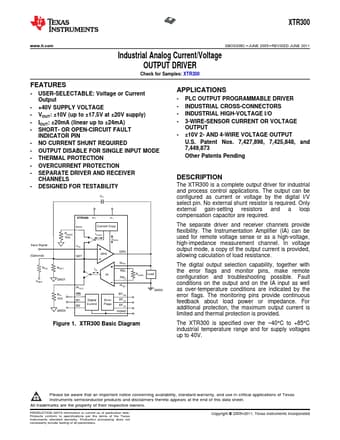

XTR300 XTR300 www.ti.com SBOS336C * JUNE 2005 * REVISED JUNE 2011 Industrial Analog Current/Voltage OUTPUT DRIVER Check for Samples.
The XTR300 is a complete output driver for industrial and process control applications.

XTR300 Features

* 1
* 2 USER-SELECTABLE: Voltage or Current Output
* +40V SUPPLY VOLTAGE
* VOUT: ±10V (up to ±17.5V at ±20V supply)
* IOUT: ±20mA (linear up to ±24mA)
* SHORT- OR OPEN-CIRCUIT FAULT INDICATOR PIN
* NO CURRENT SHUNT REQUIRED
* OUTPUT DISABLE FOR SI

XTR300 Applications

* PLC OUTPUT PROGRAMMABLE DRIVER
* INDUSTRIAL CROSS-CONNECTORS
* INDUSTRIAL HIGH-VOLTAGE I/O
* 3-WIRE-SENSOR CURRENT OR VOLTAGE OUTPUT
* ±10V 2- AND 4-WIRE VOLTAGE OUTPUT U. S. Patent Nos. 7,427,898, 7,425,848, and 7,449,873 Other Patents Pending space space DE
