DAC8805, DAC8805_Burr Multiplying Digital-to-Analog Converter

Burr-Brown

Description

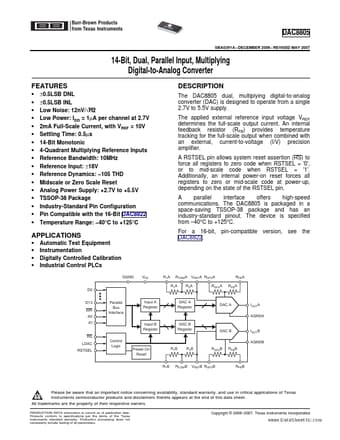

BurrĆBrown Products from Texas Instruments DA C8 80 5 DAC8805 SBAS391A * DECEMBER 2006 * REVISED MAY 2007 14-Bit, Dual, Parallel .
The DAC8805 dual, multiplying digital-to-analog converter (DAC) is designed to operate from a single 2.

📥 Download Datasheet

DAC8805 Datasheet Preview — This datasheet PDF includes multiple part numbers: DAC8805, DAC8805_Burr. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: DAC8805, DAC8805_Burr
Manufacturer: Burr-Brown
File Size: 526.79 KB
Datasheet: DAC8805_Burr-Brown.pdf
Description: Multiplying Digital-to-Analog Converter
Note: This datasheet PDF includes multiple part numbers: DAC8805, DAC8805_Burr.
Please refer to the document for exact specifications by model.

Features

* ±0.5LSB DNL ±0.5LSB INL Low Noise: 12nV/√Hz Low Power: IDD = 1µA per channel at 2.7V 2mA F

Applications

* Automatic Test Equipment Instrumentation Digitally Controlled Calibration Industrial Control PLCs DGND D0 D13 WR A0 A1 Input B Register Control Logic Parallel Bus Interface Input A Register VDD R1A RCOMA R1A VREFA ROFSA ROFSA RFBA RFBA R2A DAC A Register DAC A IOUTA AGNDA DAC B Register DAC
