DAC8811

DIGITAL-TO-ANALOG CONVERTER

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Texas Instruments DAC8811IBDGKR IC DAC 16BIT A-OUT 8VSSOP DigiKey 1092 500 units
$11.96

DAC8811 Datasheet (1.13 MB)

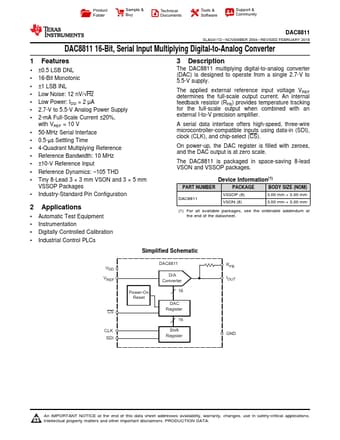

Preview of DAC8811 PDF

Datasheet Details

Part number:

DAC8811

Manufacturer:

Texas Instruments ↗

File Size:

1.13 MB

Description:

Digital-to-analog converter.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community DAC8811 SLAS411D

* NOVEMBER 2004

* REVISED F.

DAC8811 Features

* 1 ±0.5 LSB DNL

* 16-Bit Monotonic

* ±1 LSB INL

* Low Noise: 12 nV/√Hz

* Low Power: IDD = 2 µA

* 2.7-V to 5.5-V Analog Power Supply

* 2-mA Full-Scale Current ±20%, with VREF = 10 V

* 50-MHz Serial Interface

* 0.5-μs Settling Tim

DAC8811 General Description

The DAC8811 multiplying digital-to-analog converter (DAC) is designed to operate from a single 2.7-V to 5.5-V supply. The applied external reference input voltage VREF determines the full-scale output current. An internal feedback resistor (RFB) provides temperature tracking for the full-scale outpu.
