DAC8803 - DIGITAL-TO-ANALOG CONVERTER

DAC8803 Description

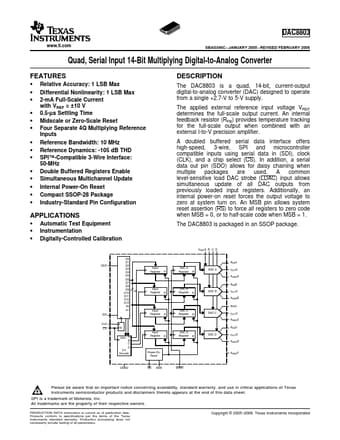

DAC8803 www.ti.com SBAS340C * JANUARY 2005 * REVISED FEBRUARY 2006 Quad, Serial Input 14-Bit Multiplying Digital-to-Analog Converte.
The DAC8803 is a quad, 14-bit, current-output digital-to-analog converter (DAC) designed to operate from a single +2.

DAC8803 Features

* Relative Accuracy: 1 LSB Max
* Differential Nonlinearity: 1 LSB Max
* 2-mA Full-Scale Current with VREF = ±10 V
* 0.5-µs Settling Time
* Midscale or Zero-Scale Reset
* Four Separate 4Q Multiplying Reference Inputs
* Reference Bandwidth: 10 MH

DAC8803 Applications

* Automatic Test Equipment
* Instrumentation
