DAC8812 Datasheet - Texas Instruments

DAC8812 - DIGITAL-TO-ANALOG CONVERTER

The DAC8812 is a dual, 16-bit, current-output digitalto-analog converter (DAC) designed to operate from a single 2.7-V to 5.5-V supply.

The applied external reference input voltage VREF determines the full-scale output current.

An internal feedback resistor (RFB) provides temperature tracking for th

DAC8812 Features

* 1 Relative Accuracy: 1 LSB Max

* Differential Nonlinearity: 1 LSB Max

* 2-mA Full-Scale Current ±20%, With VREF = ±10 V

* 0.5-μs Settling Time

* Midscale or Zero-Scale Reset

* Separate 4Q Multiplying Reference Inputs

* Reference Bandwidth: 10

DAC8812-etcTI.pdf

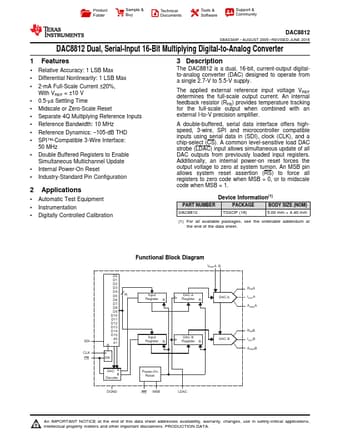

Preview of DAC8812 PDF
DAC8812 Datasheet Preview Page 2 DAC8812 Datasheet Preview Page 3

Datasheet Details

Part number:

DAC8812

Manufacturer:

Texas Instruments ↗

File Size:

1.31 MB

Description:

Digital-to-analog converter.
