INA2331 Datasheet, Amplifiers, Burr-Brown

INA2331 Features

  • Amplifiers q DESIGNED FOR LOW COST q HIGH GAIN ACCURACY: G = 5, 0.02%, 2ppm/°C q GAIN SET WITH EXT. RESISTORS FOR > 5V/V q LOW OFFSET VOLTAGE: ±250µV q HIGH CMRR: 94dB DC, 50dB at 45kHz q LOW BIAS

PDF File Details

Part number:

INA2331

Manufacturer:

Burr-Brown

File Size:

0.96MB

Download:

📄 Datasheet

Description:

Cmos instrumentation amplifiers. The INA331 and INA2331 are rail-to-rail output, low-power CMOS instrumentation amplifiers that offer wide range, singlesupply operati

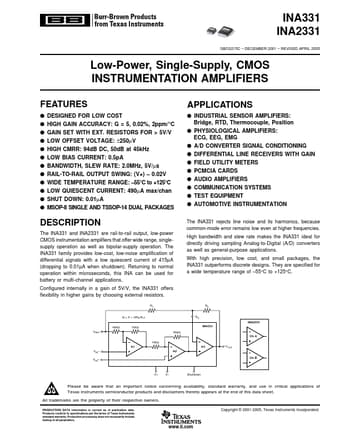

Datasheet Preview: INA2331 📥 Download PDF (0.96MB)
Page 2 of INA2331 Page 3 of INA2331

INA2331 Application

  • Applications q INDUSTRIAL SENSOR AMPLIFIERS: Bridge, RTD, Thermocouple, Position q PHYSIOLOGICAL AMPLIFIERS: ECG, EEG, EMG q A/D CONVERTER SIGNAL CO
