INA233 - Bidirectional Current and Power Monitor

Texas Instruments

📥 Download Datasheet

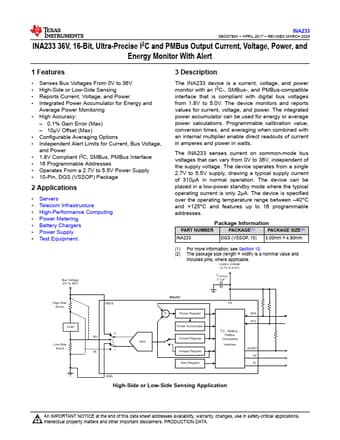

INA233 Datasheet Preview — Preview of INA233 PDF

Datasheet Details

Part number: INA233
Manufacturer: Texas Instruments ↗
File Size: 1.61 MB
Datasheet: INA233-etcTI.pdf
Description: Bidirectional Current and Power Monitor

INA233 Product details

Description

The INA233 device is a current, voltage, and power monitor with an I2C-, SMBus-, and PMBus-compatible interface that is compliant with digital bus voltages from 1.8V to 5.0V.

Features

Senses Bus Voltages From 0V to 36V.
High-Side or Low-Side Sensing.
Reports Current, Voltage, and Power.
Integrated Power Accumulator for Energy and Average Power Monitoring.
High Accuracy:.
0.1% Gain Error (Max).
10µV Offset (Max).
Configurable Averaging Options.
Independent Alert Limits for Current, Bus Voltage, and Power.
1.8V Compliant I2C, SMBus, PMBus Interface.
16 Programmable Addresses.
