OPA2342

OPERATIONAL AMPLIFIER

OPA2342 Features

* q LOW QUIESCENT CURRENT: 150µA typ q RAIL-TO-RAIL INPUT q RAIL-TO-RAIL OUTPUT (within 1mV) q SINGLE SUPPLY CAPABILITY q LOW COST q MicroSIZE PACKAGE OPTIONS: SOT23-5 MSOP-8 TSSOP-14 q BANDWIDTH: 1MHz q SLEW RATE: 1V/µs q THD + NOISE: 0.006% APPLICATIONS q COMMUNICATIONS q PCMCIA CARDS q DATA ACQUISI

OPA2342 General Description

The OPA342 series rail-to-rail CMOS operational amplifiers are designed for low cost, low power, miniature applications. They are optimized to operate on a single supply as low as 2.5V with an input common-mode voltage range that extends 300mV beyond the supplies. Rail-to-rail input/output and high-.

OPA2342 Datasheet (234.16 KB)

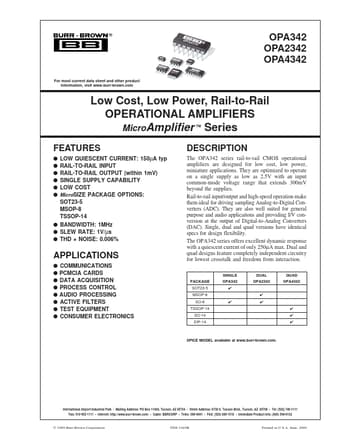

Preview of OPA2342 PDF

Datasheet Details

Part number:

OPA2342

Manufacturer:

Burr-Brown

File Size:

234.16 KB

Description:

Operational amplifier.
® For most current data sheet and other product information, visit www.burr-brown.com OPA4342 OPA2342 OPA342 OPA342 ® OPA4342 OPA342 OPA2342 OPA4.
