OPA687

Wideband / Ultra-Low Noise / Voltage Feedback OPERATIONAL AMPLIFIER With Power Down

OPA687 Features

* q HIGH GAIN BANDWIDTH: 3.8GHz q LOW INPUT VOLTAGE NOISE: 0.95nV/√Hz q VERY LOW DISTORTION:

* 95dBc (5MHz) q LOW DISABLED POWER: 2mW q VERY HIGH SLEW RATE: 900V/µs q STABLE FOR G ≥ 12 APPLICATIONS q q q q q q LOW DISTORTION ADC DRIVER OC-3 FIBER OPTIC RECEIVER LOW NOISE DIFFERENTIAL AMPLIFIER

OPA687 General Description

The OPA687 combines a very high gain bandwidth and large signal performance with an ultra-low input noise voltage (0.95nV/√Hz) while dissipating only 18mA supply current. Where power savings is paramount, the OPA687 also includes an optional power down pin that, when pulled low, will disable the amp.

OPA687 Datasheet (172.08 KB)

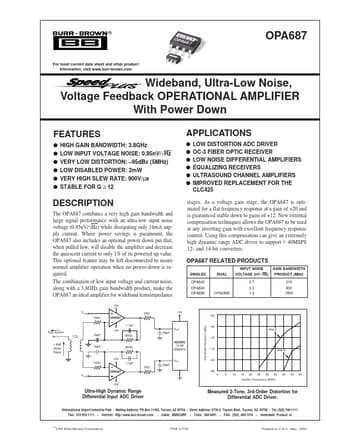

Preview of OPA687 PDF

Datasheet Details

Part number:

OPA687

Manufacturer:

Burr-Brown

File Size:

172.08 KB

Description:

Wideband / ultra-low noise / voltage feedback operational amplifier with power down.
® OPA 687 OPA687 For most current data sheet and other product information, visit www.burr-brown.com Wideband, Ultra-Low Noise, Voltage Feedback OP.
