TSC2000, TSC2000-Burr Datasheet - Burr-Brown

TSC2000 PDA ANALOG INTERFACE

The TSC2000 is a complete PDA analog interface circuit. It contains a complete 12-bit, Analog-to-Digital (A/D) resistive touch screen converter including drivers, the control to measure touch pressure, and an 8-bit Digital-to-Analog (D/A) converter output for LCD contrast control. The TSC2000 interf.

TSC2000 Features

* q 4-WIRE TOUCH SCREEN INTERFACE q RATIOMETRIC CONVERSION q SINGLE 2.7V TO 3.6V SUPPLY q SERIAL INTERFACE q INTERNAL DETECTION OF SCREEN TOUCH q PROGRAMMABLE 8-, 10-, OR 12-BIT RESOLUTION q PROGRAMMABLE SAMPLING RATES q DIRECT BATTERY MEASUREMENT (0.5V to 6V) q ON-CHIP TEMPERATURE MEASUREMENT q TOUCH

TSC2000-Burr-Brown.pdf

This datasheet PDF includes multiple part numbers: TSC2000, TSC2000-Burr. Please refer to the document for exact specifications by model.

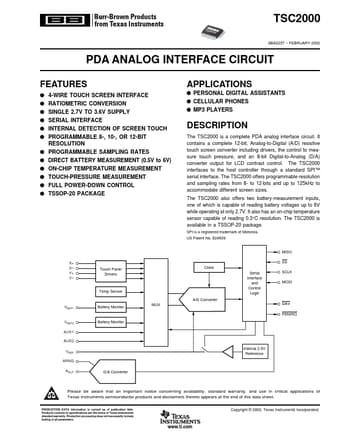

TSC2000 Datasheet Preview Page 2 TSC2000 Datasheet Preview Page 3

Datasheet Details

Part number:

TSC2000, TSC2000-Burr

Manufacturer:

Burr-Brown

File Size:

1.03 MB

Description:

Pda analog interface.

Note:

This datasheet PDF includes multiple part numbers: TSC2000, TSC2000-Burr.
Please refer to the document for exact specifications by model.
