TSC2005, TSC2005_Burr 4-Wire TOUCH SCREEN CONTROLLER

TSC2005 Description

BurrĆBrown Products from Texas Instruments TSC2005 SBAS379C * DECEMBER 2006 * REVISED MARCH 2008 1.6V to 3.6V, 12-Bit, Nanopower, 4-.
The TSC2005 is a very low-power touch screen controller designed to work with power-sensitive, handheld applications that are based on an advanced low.

TSC2005 Features

* 1
* 23 4-Wire Touch Screen Interface
* Ratiometric Conversion
* Single 1.6V to 3.6V Supply
* Preprocessing to Reduce Bus Activity
* High-Speed SPI-Compatible Interface
* Internal Detection of Screen Touch
* Register-Based Programmable:

TSC2005 Applications

* Personal Digital Assistants
* Cellular Phones
* Portable Instruments
* Point-of-Sale Terminals
* MP3 Players, Pagers

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TSC2005, TSC2005_Burr. Please refer to the document for exact specifications by model.

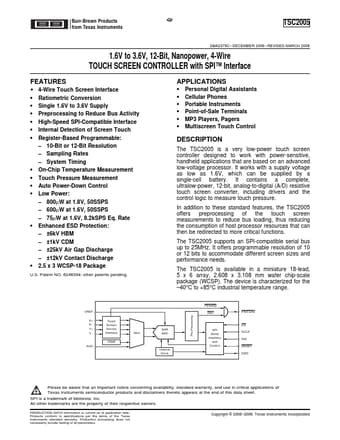

datasheet Preview Page 2 datasheet Preview Page 3
