TSC2004, TSC2004_Burr 4-Wire TOUCH SCREEN CONTROLLER

TSC2004 Description

BurrĆBrown Products from Texas Instruments TSC2004 ® TSC2004 SBAS408E * JUNE 2007 * REVISED MARCH 2008 1.2V to 3.6V, 12-Bit, Nanopo.
The TSC2004 is a very low-power touch screen controller designed to work with power-sensitive, handheld applications that are based on advanced low-vo.

TSC2004 Features

* 1
* 23 4-Wire Touch Screen Interface
* Ratiometric Conversion
* Single 1.2V to 3.6V Supply
* Preprocessing to Reduce Bus Activity
* High-Speed I2C-Compatible Interface
* Internal Detection of Screen Touch
* Register-Based Programmable:

TSC2004 Applications

* Cellular Phones
* Portable Instruments
* MP3 Players, Pagers

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TSC2004, TSC2004_Burr. Please refer to the document for exact specifications by model.

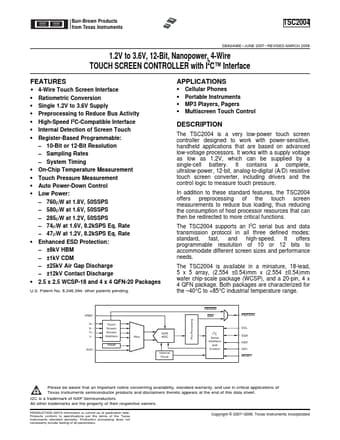

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TSC2004, TSC2004_Burr
Manufacturer
Burr-Brown
File Size
1.59 MB
Datasheet
TSC2004_Burr-Brown.pdf
Description
4-Wire TOUCH SCREEN CONTROLLER
Note
This datasheet PDF includes multiple part numbers: TSC2004, TSC2004_Burr.
Please refer to the document for exact specifications by model.
