CM6206

USB Audio I/O Controller

C-MEDIA ELECTRONICS

CM6206 Features

* are programmable with external EEPROM and MCU interface. In addition, MCU/EEPROM/GPIO control can easily via HID software interface. Better yet, CM6206 support stereo MIC, phone jack sense, S/PDIF I/O 48 KHz sampling rate. Moreover, unique patent driver can support world‟s first SPEAKER SHIFTER, Kar

CM6206 General Description

CM6206 is a highly integrated single chip USB audio solution. All essential analog modules are embedded in CM6206, including 8CH DAC and earphone buffer, 2CH ADC, microphone gain, PLL, regulator, and USB transceiver. It is very suitable for high end USB external audio box, USB multi-channel headphon.

CM6206 Datasheet (1.33 MB)

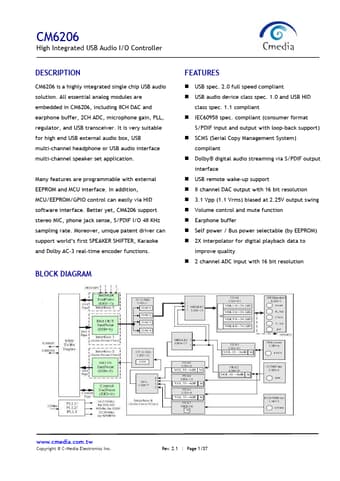

CM6206 Datasheet Preview — Preview of CM6206 PDF

Datasheet Details

Part number:

CM6206

Manufacturer:

C-MEDIA ELECTRONICS

File Size:

1.33 MB

Description:

Usb audio i/o controller.
