CM600DU-24F

Dual IGBT Module

CM600DU-24F Features

* Low Drive Power

* Low VCE(sat)

* Discrete Super-Fast Recovery Free-Wheel Diode

* Isolated Baseplate for Easy Heat Sinking Millimeters 14.5 40.0 65.0 M8 6.5 Dia. 8.0 Outline Drawing and Circuit Diagram Dimensions A B C D E F G H J K L M N Inches 5.51 5.12 5.12 1.38

CM600DU-24F General Description

Powerex IGBTMOD™ Modules are designed for use in switching applications. Each module consists of two IGBT Transistors in a halfbridge configuration with each transistor having a reverseconnected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinkin.

CM600DU-24F Datasheet (65.63 KB)

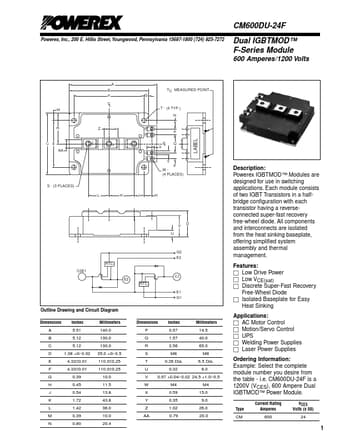

Preview of CM600DU-24F PDF

Datasheet Details

Part number:

CM600DU-24F

Manufacturer:

Powerex Power Semiconductors

File Size:

65.63 KB

Description:

Dual igbt module.
CM600DU-24F Powerex, Inc., 200 E. Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 Dual IGBTMOD™ F-Series Module 600 Amperes/1200 Vol.
