CM600DU-5F

Dual IGBT Module

CM600DU-5F Features

* Low Drive Power

* Low VCE(sat)

* Discrete Super-Fast Recovery Free-Wheel Diode

* Isolated Baseplate for Easy Heat Sinking Outline Drawing and Circuit Diagram Dimensions A B C D E F G H J K Inches 4.33 3.15 3.66± 0.01 2.44± 0.01 0.83 0.16 0.24 0.59 0.55 Millimeters

CM600DU-5F General Description

Powerex IGBTMOD™ Modules are designed for use in switching applications. Each module consists of two IGBT Transistors in a halfbridge configuration with each transistor having a reverseconnected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinkin.

CM600DU-5F Datasheet (72.73 KB)

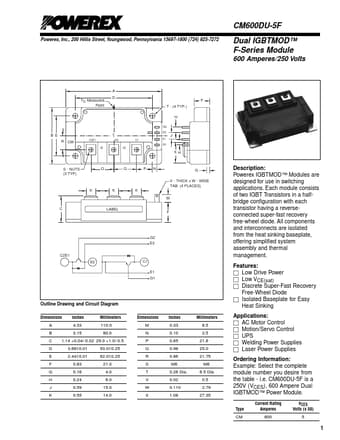

Preview of CM600DU-5F PDF

Datasheet Details

Part number:

CM600DU-5F

Manufacturer:

Powerex Power Semiconductors

File Size:

72.73 KB

Description:

Dual igbt module.
CM600DU-5F Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 Dual IGBTMOD™ F-Series Module 600 Amperes/250 Volts A.
