CM600DX-34T Datasheet - Mitsubishi

CM600DX-34T IGBT

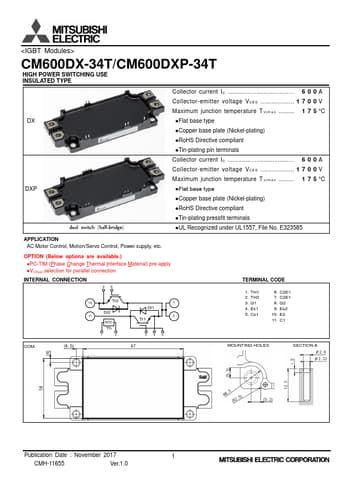

CM600DX-34T/CM600DXP-34T HIGH POWER SWITCHING USE INSULATED TYPE DX DXP dual switch (half-bridge) Collector current IC …… 6 0 0 A Collector-emitter voltage VCES 1 7 0 0 V Maximum junction temperature T vj m a x 1 7 5 °C Flat base type Copper base plate (Nickel-plating) RoHS Directive compliant Tin-plating pin terminals Collector current IC …… 6 0 0 A Collector-emitter voltage VCES 1 7 0 0 V Maximum junction temperature T vj m a x 1 7 5 °C Flat base t.

CM600DX-34T-Mitsubishi.pdf
