CM600DU-24NFH IGBT Module

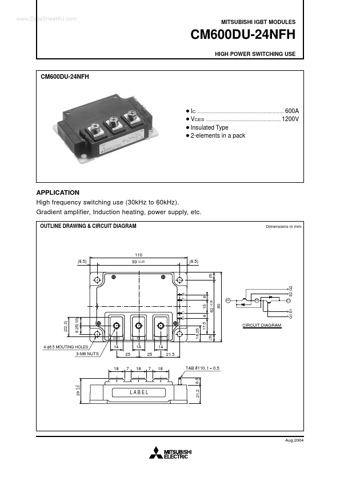

www.DataSheet4U.com MITSUBISHI IGBT MODULES CM600DU-24NFH HIGH POWER SWITCHING USE CM600DU-24NFH ¡IC 600A ¡VCES 1200V ¡Insulated Type ¡2-elements in a pack APPLICATION High frequency switching use (30kHz to 60kHz). Gradient amplifier, Induction heating, power supply, etc. OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 110 (8.5) 93 ±0.25 (8.5) (9) E2 G2 6 62 ±0.25 C2E1 E2 C1 15 80 G1 E1 9.25(10) (22.2) 17.5 CIRCUIT DIAGRAM 18.25 C2E1 E2 C1 4-φ6.5 MOUTING HOLES 3-M6 .
