CM600DX-24S1 Datasheet - Mitsubishi

CM600DX-24S1 IGBT

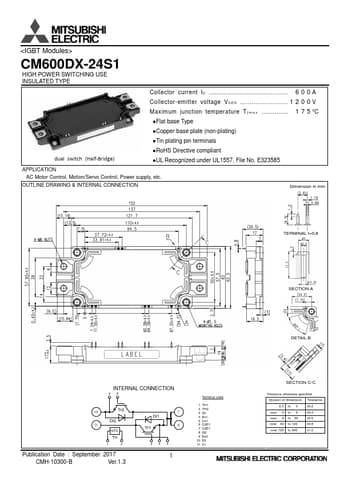

CM600DX-24S1 HIGH POWER SWITCHING USE INSULATED TYPE dual switch (Half-Bridge) Collector current IC …… 6 0 0 A Collector-emitter voltage VCES … 1 2 0 0 V Maximum junction temperature T j m a x 1 7 5 °C Flat base Type Copper base plate (non-plating) Tin plating pin terminals RoHS Directive compliant UL Recognized under UL1557, File No. E323585 APPLICATION AC Motor Control, Motion/Servo Control, Power supply, etc. OUTLINE DRAWING & INTERNAL CONNECTION D.
