CM600DXP-13T, CM600DX-13T Datasheet - Mitsubishi

CM600DXP-13T - IGBT

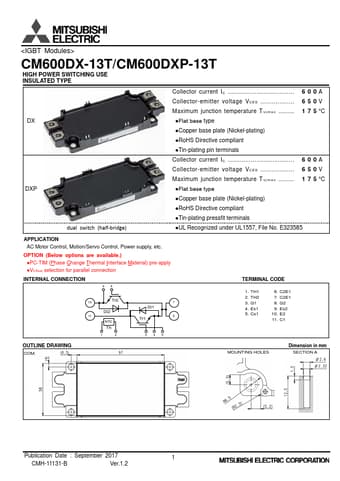

CM600DX-13T/CM600DXP-13T HIGH POWER SWITCHING USE INSULATED TYPE DX DXP dual switch (half-bridge) Collector current IC …… 6 0 0 A Collector-emitter voltage VCES 6 5 0 V Maximum junction temperature T vj m a x 1 7 5 °C Flat base type Copper base plate (Nickel-plating) RoHS Directive compliant Tin-plating pin terminals Collector current IC …… 6 0 0 A Collector-emitter voltage VCES 6 5 0 V Maximum junction temperature T vj m a x 1 7 5 °C Flat base type

CM600DX-13T-Mitsubishi.pdf
