CS8205E - N-Channel Trench Power MOSFET

Datasheet Summary

Description

The CS8205E uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V.

This device is suitable for use as a Battery protection or in other Switching applications.

Features

VDS = 19.5V,ID =4.2A RDS(ON) < 26mΩ @ VGS =4.5V RDS(ON) < 36mΩ @ VGS =2.5V.
High Power and current handing capability.
Lead free product is acquired.
Surface Mount Package.

Datasheet Details

Part number	CS8205E
Manufacturer	CASS
File Size	718.93 KB
Description	N-Channel Trench Power MOSFET
Datasheet	CS8205E Datasheet

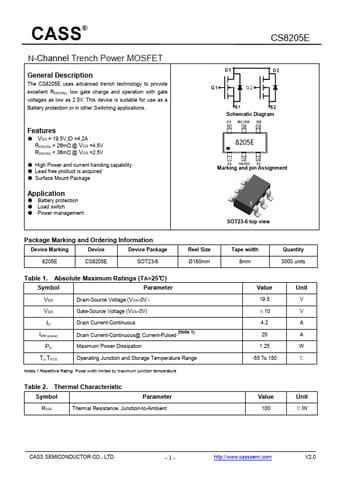

Additional preview pages of the CS8205E datasheet.

📁 Similar Datasheet

CS8220 - PC / AT Compatible Chipset (CHIPS)

CS8221 - Micropower 5V/ 100mA Low Dropout Linear Regulator (Cherry Semiconductor Corporation)

CS8221 - Low Dropout Linear Regulator (ON Semiconductor)

CS8227GP - CS8227GP (Chest)

CS8240 - 500mA High Side (PNP) Driver with On-Chip Flyback Diode (Cherry Semiconductor Corporation)

CS8240 - High Side (PNP) Driver (ON Semiconductor)

CS8245 - VGA Chipset (Chips)

CS8271 - Adjustable Micropower Low Dropout Linear Regulator with ENABLE (Cherry Semiconductor Corporation)

CS8281 - 5V/250mA/ 5V/100mA Micropower Low Dropout Regulator with ENABLE (Cherry Semiconductor Corporation)

CS82C237 - CMOS High Performance Programmable DMA Controller (Intersil Corporation)

Full PDF Text Transcription

Click to expand full text

CS8205E N-Channel Trench Power MOSFET General Description The CS8205E uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V. This device is suitable for use as a Battery protection or in other Switching applications. Features ● VDS = 19.5V,ID =4.2A RDS(ON) < 26mΩ @ VGS =4.5V RDS(ON) < 36mΩ @ VGS =2.5V ● High Power and current handing capability ● Lead free product is acquired ● Surface Mount Package Application ● Battery protection ● Load switch ● Power management Schematic Diagram Marking and pin Assignment SOT23-6 top view Package Marking and Ordering Information Device Marking Device Device Package 8205E CS8205E SOT23-6 Reel Size Ø180mm Table 1.
