CS8221 - Micropower 5V/ 100mA Low Dropout Linear Regulator

Datasheet Summary

Description

The CS8221 is a precision 5V, 100mA micropower voltage regulator with very low quiescent current (60µA typical at 100µA load).

The 5V output is accurate within ±2% and supplies 100mA of load current with a maximum dropout voltage of only 600mV.

Features

  • s Low Quiescent Current (60µA @ 100µA load) s 5V, ±2% Output s 100mA Output Current Capability s Fault Protection +74V Peak Transient Voltage -15V Reverse Voltage Short Circuit Thermal Shutdown Low Reverse Current (Output to Input) Absolute Maximum Ratings Power Dissipation.
  • . . . Internally Limited Transient Peak Voltage (60V Load Dump).
  • . . . . . -15V, 74V Output Current.

📥 Download Datasheet

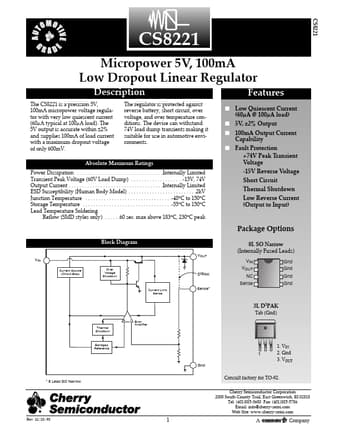

Datasheet preview – CS8221

Datasheet Details

Part number CS8221
Manufacturer Cherry Semiconductor Corporation
File Size 149.65 KB
Description Micropower 5V/ 100mA Low Dropout Linear Regulator
Datasheet download datasheet CS8221 Datasheet
