CS8240 Datasheet, Diode, Cherry Semiconductor Corporation

CS8240 Features

  • Diode s Low Output Saturation Voltage 0.22V at IOUT = 125mA 0.33V at IOUT = 225mA s Overmolded Package s On-Chip Flyback Diode s Fault Protection Over voltage Shutdown (32V, typ) Thermal Shut

PDF File Details

Part number:

CS8240

Manufacturer:

Cherry Semiconductor Corporation

File Size:

142.93kb

Download:

📄 Datasheet

Description:

500ma high side (pnp) driver with on-chip flyback diode. The CS8240 is a fast, PNP high side driver capable of delivering up to 500mA into a resistive or inductive load in harsh automotive o

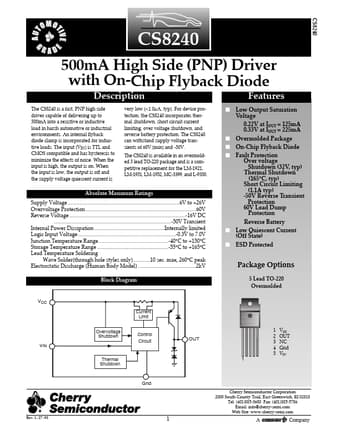

Datasheet Preview: CS8240 📥 Download PDF (142.93kb)
