CS8205 - N-Channel Trench Power MOSFET

Datasheet Summary

Description

The CS8205 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V.

This device is suitable for use as a Battery protection or in other Switching applications.

Features

VDS = 20V,ID =4.2A RDS(ON) < 26mΩ @ VGS =4.5V RDS(ON) < 36mΩ @ VGS =2.5V.
High Power and current handing capability.
Lead free product is acquired.
Surface Mount Package.

Datasheet Details

Part number	CS8205
Manufacturer	CASS
File Size	734.05 KB
Description	N-Channel Trench Power MOSFET
Datasheet	CS8205 Datasheet

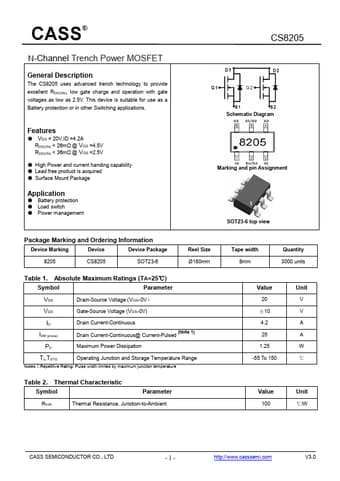

Additional preview pages of the CS8205 datasheet.
